What is Deformable Attention and how does it reduce computational complexity for object detection tasks?
Answer
Deformable Attention is a sparse attention mechanism that learns dynamic sampling locations instead of attending to all spatial positions uniformly. It uses learned 2D offsets from reference points to sample only the most relevant features, reducing complexity from
to
where K is a small constant (typically 4). This makes it ideal for high-resolution feature maps in object detection where full attention is computationally prohibitive — for a 1024×1024 feature map, standard attention requires ~1M operations per head while deformable attention needs only ~4K.

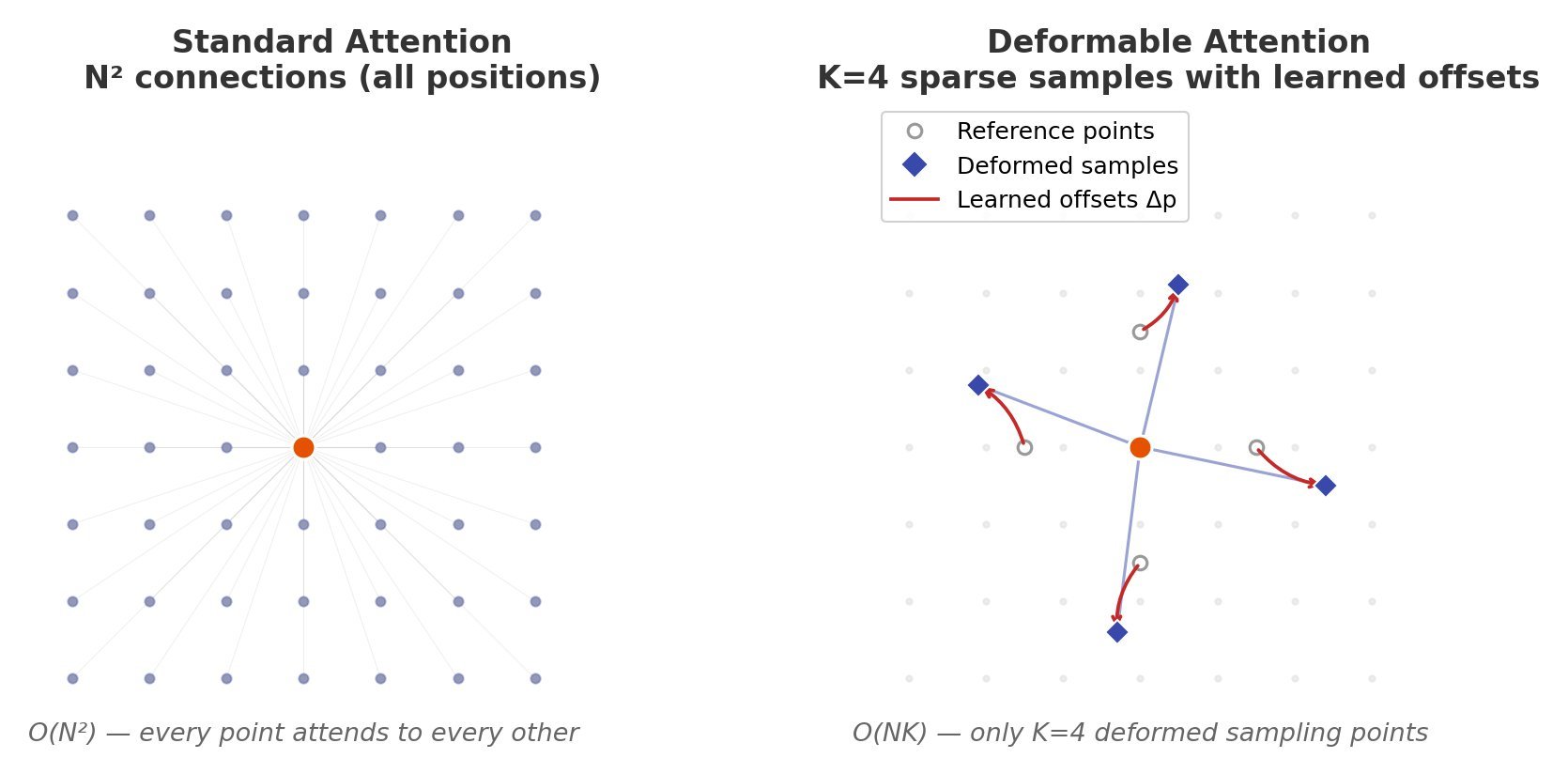

Figure 1: Deformable attention learns K=4 sampling offsets per query point instead of dense N×N attention
(1) Sparse Sampling: Instead of computing attention over all
positions, deformable attention samples only K reference points per query, typically K=4 or 8, reducing the key-value set from N to K.
(2) Learned Offsets: The model predicts
offsets from each reference point
using a lightweight linear layer on query features, requiring only
additional computation where C is channel dimension.
(3) Bilinear Interpolation: When offsets point to non-integer locations, bilinear interpolation computes feature values from the 4 nearest pixels, enabling sub-pixel precision sampling without modifying the feature map.
Figure 2: Complexity comparison shows O(NK) grows linearly while O(N²) becomes prohibitive for large feature maps
Mathematical Formulation:
![y(p) = \sum_{m=1}^{M} W_m \left[ \sum_{k=1}^{K} A_{mk} \cdot W_m' x(p + p_k + \Delta p_{mk}) \right]](https://s0.wp.com/latex.php?latex=y%28p%29+%3D+%5Csum_%7Bm%3D1%7D%5E%7BM%7D+W_m+%5Cleft%5B+%5Csum_%7Bk%3D1%7D%5E%7BK%7D+A_%7Bmk%7D+%5Ccdot+W_m%27+x%28p+%2B+p_k+%2B+%5CDelta+p_%7Bmk%7D%29+%5Cright%5D&bg=ffffff&fg=000&s=3&c=20201002)
Where:
is the reference position (query location on the feature map)
is the number of attention heads
is the number of sampled keys per head (typically 4)- are fixed reference offsets (uniformly initialized)
are learned deformable offsets (2D, predicted per head per key)
is the attention weight (normalized, not from softmax over all positions)
are projection matrices for each head
is the reference position (query location on the feature map)
is the number of attention heads
is the number of sampled keys per head (typically 4)
are fixed reference offsets (uniformly initialized)
are learned deformable offsets (2D, predicted per head per key)
is the attention weight (normalized, not from softmax over all positions)
are projection matrices for each headThe offsets are predicted by a linear projection from query features:
, where
. The attention weights
are computed via a separate softmax over only K elements, not the full N positions. In Deformable DETR, multi-scale deformable attention extends this to sample across multiple feature map resolutions simultaneously, enabling the model to capture both small and large objects efficiently.
